Product description:

Guide Sensmart thermal imaging attachment Guide TB430 – Your reliable companion for precise observation by day and night

Discover a new dimension of observation with the Guide Sensmart TB430. This state-of-the-art thermal imaging attachment combines advanced technology, robust construction, and intuitive operation to provide you with clear and detailed thermal images in any situation. Perfectly suited for hunting, wildlife observation, security, and many other applications.

Unbeatable performance – See what the eye cannot:

At the heart of the Guide TB430 is a highly sensitive 400x300 pixel thermal imaging sensor with a pixel size of 17 µm. This combination guarantees excellent image quality with sharp contrasts and fine detail rendering even in adverse weather conditions such as fog, rain, or darkness. Heat sources are reliably detected and highlighted, allowing you to effortlessly identify wildlife, people, or other interesting objects.

Impressive range and detail accuracy:

With its high-quality 35 mm objective lens, the TB430 offers an optimal field of view for observation at medium distances. The thermal sensitivity (NETD) of ≤ 30 mK enables the detection of the smallest temperature differences, providing you with significant advantages in wildlife identification or searching for injured game.

Flexibility and versatility – Your reliable partner:

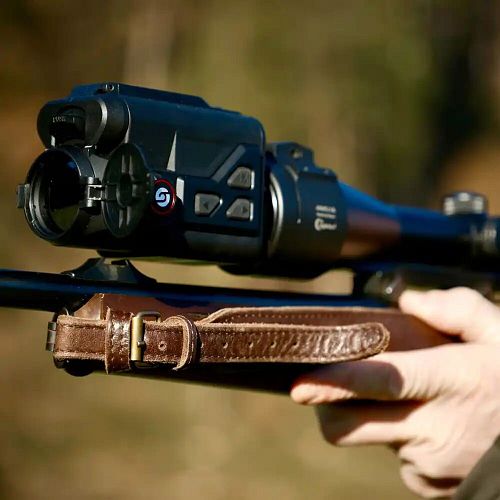

The Guide TB430 is designed as an attachment and can be mounted in just a few steps with optionally available adapters in front of your existing daylight scope. This allows you to transform your conventional riflescope or spotting scope into a powerful thermal imaging device without compromising the familiar optics and magnification.

Lightweight and robust:

The magnesium alloy housing reduces the weight to approximately 425 g while ensuring high stability and precision – ideal for use as an attachment.

Replaceable standard batteries

For a long time, Guide Sensmart has relied on the use of easily obtainable standard-sized replaceable batteries. With the 2 included 18650 batteries, a runtime of up to 12 hours is possible. In designing the battery compartment, Guide has succeeded in constructing it so that it does not matter how the batteries are placed in the compartment (polarity). It is only important that the positive terminal of one battery is opposite the negative terminal of the other.

Intuitive operation and thoughtful features:

The operation of the Guide TB430 is incredibly simple and is done via user-friendly buttons. The bright and high-contrast OLED display provides a clear image even in direct sunlight. Practical features include:

Various color palettes: Choose the optimal color palette for your observation situation (e.g., White Hot, Black Hot, Red Hot, Fusion).
Digital zoom: Zoom in digitally on the image as needed to see details even better.
Picture-in-Picture function (PIP): Display an enlarged section of the image in a separate window without losing the entire field of view.
Automatic calibration: Ensures an always optimal image without manual intervention.
Energy-saving mode: Extends battery life for extended observations.

Technical specifications at a glance:

Sensor resolution: 400 x 300 pixels
Pixel size: Pixel pitch of 12 μm and a sensitivity (NETD) of <25 mK
Thermal sensitivity (NETD): ≤ 30 mK
Frame rate: 50 Hz
Objective lens: 35 mm
Field of view: With a field of view of 14 x 10 m at 100 m, you maintain an overview of your operational area even at a distance.
Digital zoom: With a 6.4x digital zoom, you can see details even at
larger distances accurately detect and address.
Display: Full HD AMOLED, 1920 x 1080 pixels
Protection class: IP67
Power supply: Integrated battery
Battery life: Up to 12 hours
Operating temperature: -30°C to +50°C
Dimensions: 154 x 51 x 56 mm
Weight: 425 g

More product details:

adjustable, intelligent auto-standby mode
Hotspot tracking
Storage space for up to 5 profiles
Optional Bluetooth remote control (not included)

Trust in quality and precision – Choose the Guide Sensmart TB430 from hs-arms!

Order now and experience observation in a new dimension!

Note: To mount the attachment device on your daylight lens, you will need a suitable adapter, which you can optionally purchase in our shop. Please observe the legal regulations applicable in your federal state regarding the use of thermal imaging technology.

IMPORTANT! Fully charge the included batteries before first use!
