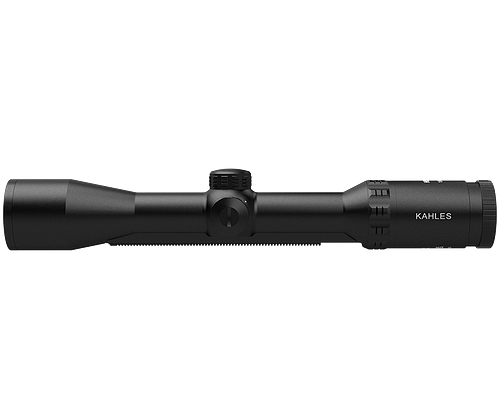

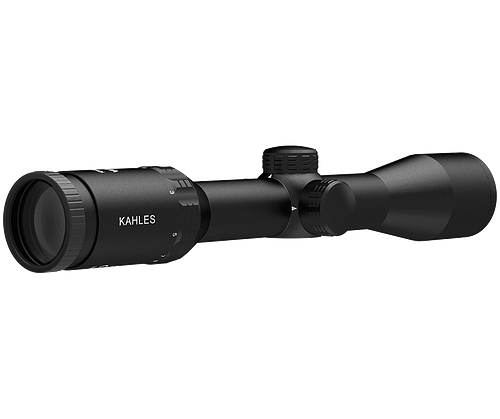

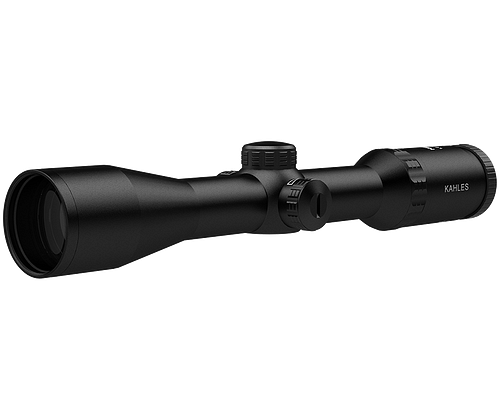

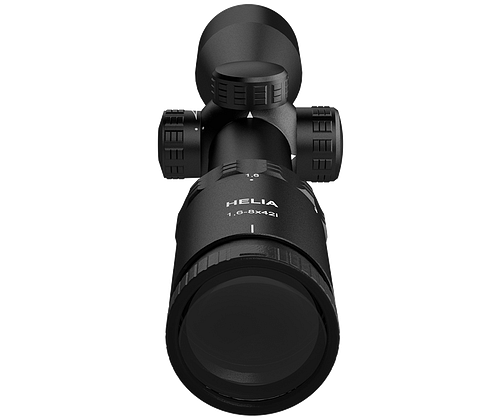

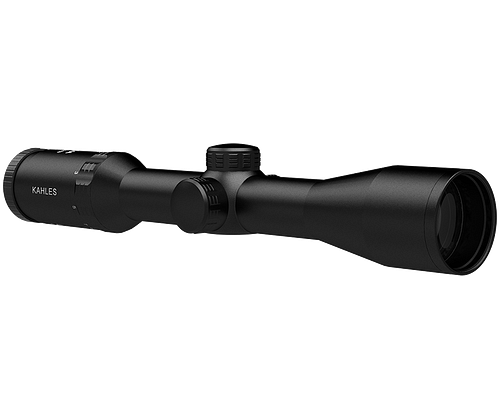

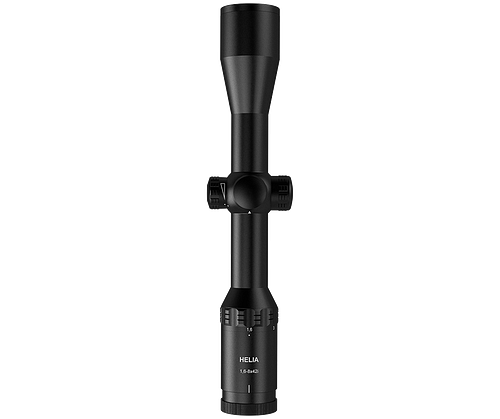

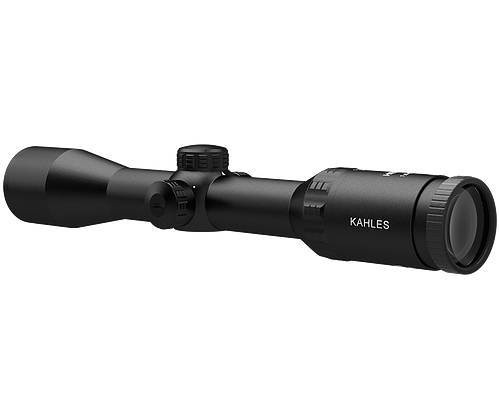

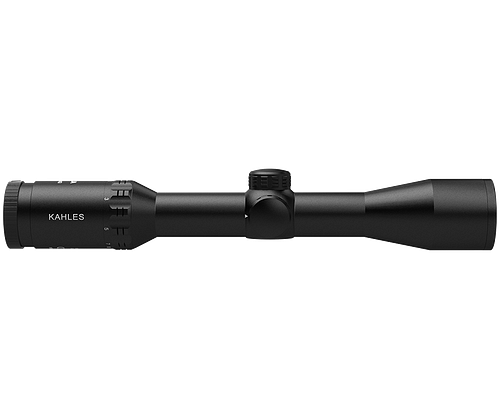

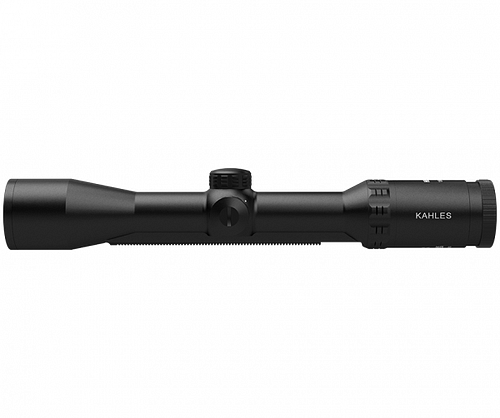

Kahles Helia 1.6-8x42i riflescope

The HELIA series impresses with its uncompromising focus on what truly matters: functionality, reliability, handling, and aesthetics. Each model is a perfect tool for its hunting application.

With a large field of view and the extra-bright illuminated reticle, the lightweight, compact HELIA 1.6-8x42i is versatile, especially for stalking and driven hunts. And with night vision aids, it can even be used at night.

Light and easy-to-handle optics in a compact design for stalking and driven hunts
Ideal as a night hunting optic in combination with night vision aids
Wide field of view (up to 25m/100m) with up to 8x magnification
Powerful optical system with exceptional edge sharpness
Extra bright day/night illuminated reticle with intelligent automatic shut-off

Magnification:
1.6-8


Objective diameter:
42 mm


Eye relief:
9.6-5.1 mm


Eye distance:
95 mm


Field of view:
25.3 - 5.1 m/100 m


Diopter adjustment:
+2/-3.5 dpt


Dusk number (DIN 58388):
5.2-18.3


Point of impact correction/click:
10 mm


Adjustment range (H/S):
1.5/1.5 m/100 m


Parallax adjustment:
-


Main tube diameter:
30 mm

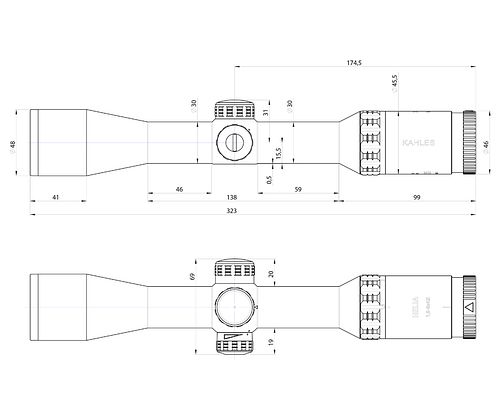

Length:
323 mm


Weight:
538 g


Weight (SR rail):
562 g


Reticle image plane:
2


Illuminated:
Yes

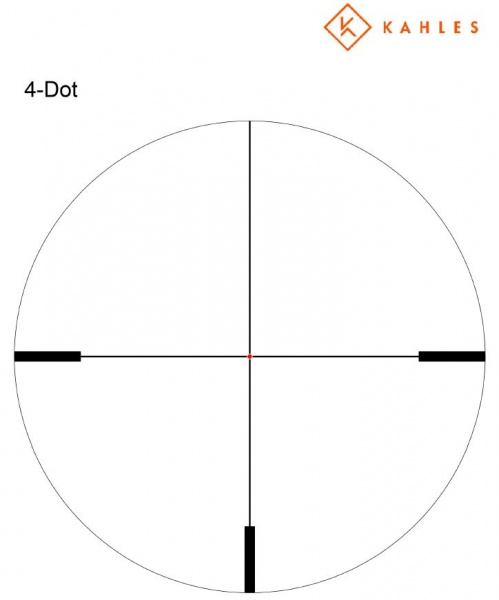

2nd image plane
When changing the magnification, the reticle remains the same size – the size of the image changes, but not that of the reticle. The cover dimensions change depending on the magnification.

Main tube diameter 30mm
The main tube has a diameter of 30 mm, the standard size for hunting riflescopes.

Automatic light
The KAHLES Automaticlight function (tilt sensor) detects whether the riflescope is in a shooting position or not and transmits this information to the illumination unit without any delay. This unit automatically controls the switching on and off of the reticle illumination to save valuable energy when not in use.

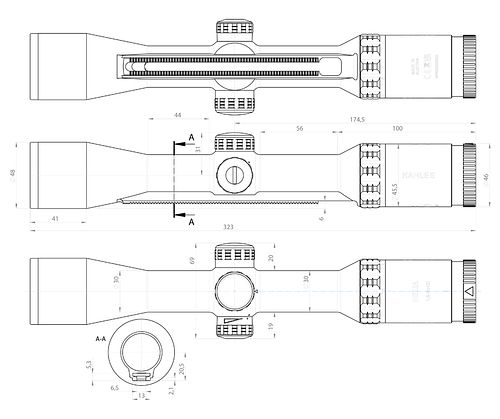

SR rail (optional)
The SR mounting rail (Swarovski Rail) has represented the most innovative type of mounting rails for several years. The rail engages with its teeth into the upper parts of the mount, ensuring absolute shot stability. This technology allows the riflescope to be quickly and easily attached and has become the standard mounting rail.
