Drone LAHOUX, Buzzard

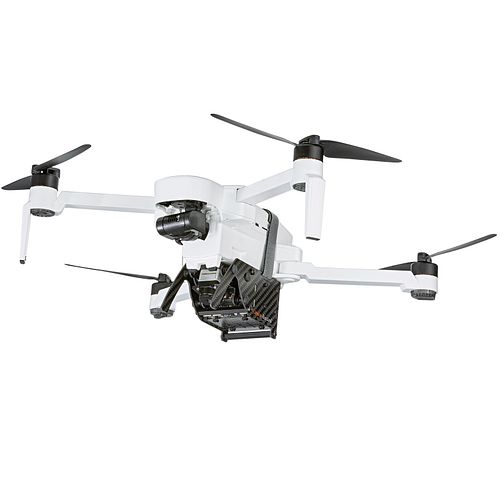

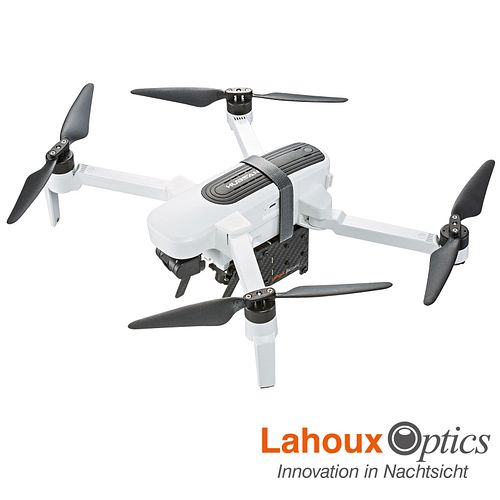

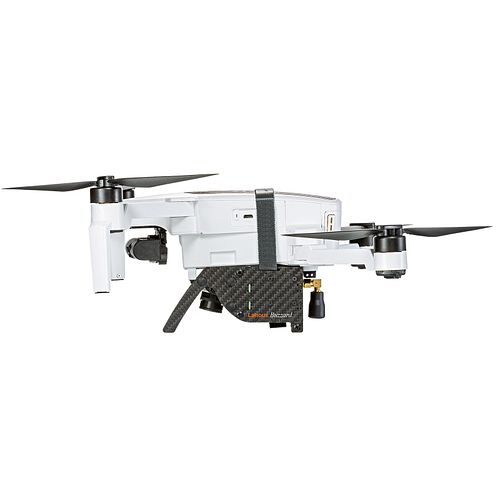

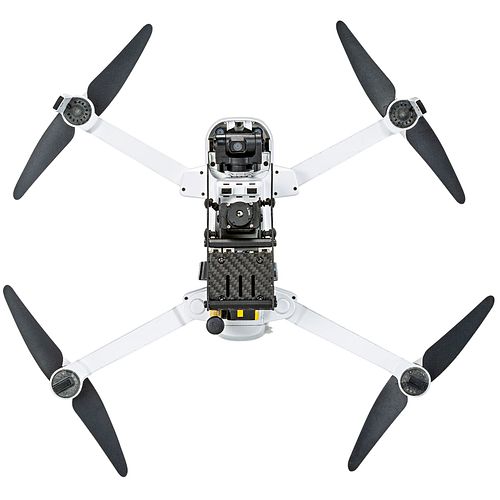

PRODUCT DETAILS The Buzzard is a thermal imaging attachment for a drone of class C1. The applications are diverse, e.g., security and surveillance, hunting and wildlife conservation. Searching for wild boars in corn, assessing damage in agriculture, rescuing fawns and birds before mowing, industrial inspections, detecting forest fires, and much more. The video transmitter can operate at 25 to 800 mW, resulting in a range of 500 to 3,000 meters, depending on local laws (EU: 25 mW). The Buzzard has a maximum video range of approximately 500 meters. The thermal imaging is captured with a resolution of 320 x 256 px with a 13.8 mm lens. The search area for fawns is 19.4 x 15 meters at a height of 30 meters. DRI (Detection/Recognition/Identification): Vehicle (4.00 x 1.75 m) - 956/239/120 meters Human (1.75 x 0.75 m) - 414/104/52 meters Fawn (0.5 x 0.5 m) - 180/45/23 meters Features of the thermal imaging device Buzzard: Lightweight carbon fiber composite construction Easy attachment and detachment to various drones Video transmission via market-leading hardware Integrated video recorder that allows for video review in the highest quality before transmission losses occur The thermal image is transmitted to an LCD monitor on a tripod Technical specifications (thermal camera Buzzard) Detection distance Vehicle: 956 m Human: 414 m Fawn: 180 m Field of view: 33.9° x 27.4° Field of view at 30 m height: 13.3 x 10.4 m Resolution: 320 x 256 px Pixel pitch: 12 µm Lens: 13.8 mm Relative aperture: F/1.0 Battery type: Rechargeable 9V LiPo battery Battery life: up to 1 hour Dimensions (L x W x H): 138 x 59 x 58 mm Weight: 115 g Technical specifications (drone HUBSAN Zino) Model: HUBSAN Zino Flight time: up to 23 min Charging time: 4 h Resolution: Ultra HD 4K Special features: includes GPS function includes camera image stabilization object tracking Return to Home waypoint mode via Zino app Dimensions (L x W x H): 305 x 252 x 90 mm Weight: 700 g Flight battery: 11.4 V / 3000 mAh Competency proof A1/A3 required: yes UAS marking requirement: required Age rating: from 14 years Scope of delivery: HUBSAN Zino drone, Buzzard thermal imaging module, tripod, Ground Station (LCD monitor for thermal camera)
