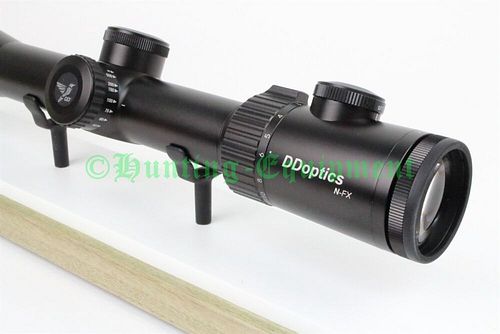

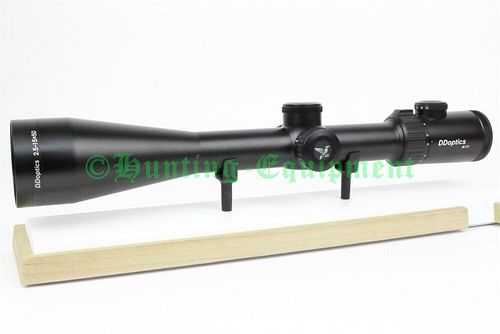

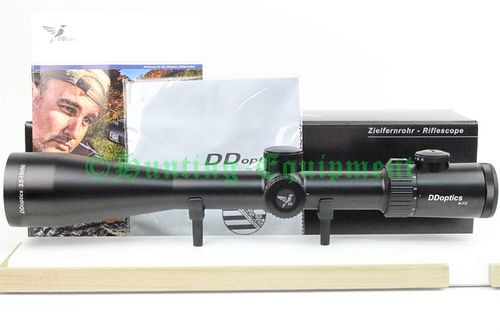

DDoptics V6 2.5-15x50 N-FX

The Nachtfalke 2.5-15x50 N-FX is the perfect extension of the NFX series in a lightweight and slim design with a 50mm objective lens. The 2.5-15x50 NF-X has also been equipped with the new N-FX eyepieces. New are the unprecedented performance features of the N-FX. In addition to the significantly larger field of view, the eye relief has also been greatly improved.

V6 - 6x Zoom
Reticle adjustment metal turrets (no plastic like gen 2)
CT glass (Clear Transmission) (low dispersion)
Double scaling (Doubleturn)
Zero stop for ASV (zero stop)
Hard tactical 1/4 click adjustment
New design of the magnification adjustment ring
New reticle 4 with significantly finer bars
Hard tactical 0.1 MRAD click adjustment (1cm/click)
Adjustment range 228 clicks = 2.28 m at 100 m

Technical Details:

Weight
759g

Generation
3

Coating
HDX III

Magnification
2.5-15x

Objective lens diameter
56

Exit pupil in mm
11.7-3.8

Dusk number
7.1-29.9

Field of view at 100m
4.7-2.5

Field of view at 109yd
No

Eye relief in mm
100

Diopter adjustment
-3 to +3

reticle
reticle 4

Illumination point II
Yes

Reticle image plane
2nd image plane

Reticle adjustment / click
0.1 MRAD

Reticle adjustment (scaling)
double

Max. adjustment range
18.4 MRAD

Parallax adjustment
20-500 - ∞

Surface
fine black

Main tube in mm
30

ASV zero stop
Yes

Objective diameter outside in mm
65

Eye piece diameter in mm
43.6

Total length in mm
372.2
