DDoptics Nighteagle Ergo 10x56 Generation 3.1

SHOPLINK
DDoptics Nachtfalke Ergo 10x56 Generation 3.1
now with open bridge

Lighter - Brighter - More stable than predecessor Generation 2
Good things come to those who wait!
Ergonomic eyecups with Z-stop
ED glass with low refractive index and dielectric mirror for brighter, more contrast-rich images and greater color fidelity

Stable, robust, ergonomic
The open bridge with its ergonomic grip stands for the most comfortable handling and a reduction in weight. The choice of materials reduces the weight of the binoculars compared to the predecessor version by 100g to just 970g.
Finger and thumb grooves as well as ribbing on the side panels provide a secure and very comfortable grip.
With nitrogen filling to prevent internal fogging and O-ring seals, the binoculars are of course completely waterproof up to a maximum diving depth of 1.5m.
The easily adjustable diopter compensation (adjustment range ± 3) is located below the right eyepiece.
Due to the three-stage retractable eyecups, even glasses wearers can enjoy the entire field of view.

Automatic focus adjustment
The 10x56 Gen 3 binoculars from the "Nachtfalke Ergo" series are equipped with a so-called Smartfocus.
This means that once the image is focused at 50m, it hardly needs to be refocused – a decisive advantage, for example, during night hunting, as precise refocusing is almost impossible in the dark.
To activate the function, simply turn the tactile marking on the focusing wheel upwards.

Weight
970 g


Magnification
10 x


Objective Ø in mm
56 mm


Exit pupil Ø in mm
5.6 mm


Field of view at 1000m
107 m


Angle of view (°)
6.1 in degrees (º)


Eyecups
Metal


Type of prism
Schmidt Pechan


Prism coating
Dielectric 52S


Lens coating
FMC HDX


Rain defender
RNP coated


Eyepiece: lenses/groups
4/3


Objective: lenses/groups
4/3


Housing material
Polycarbonate


Housing reinforcement
Rubber


Eye relief eyepiece in mm
18.1 mm


Glasses wearers eyepiece
Yes


Minimum focusing distance
3.0 m


Diopter adjustment
right


Diopter compensation
+/-3


Light intensity
31.4


Dusk number
23.7


Nitrogen filling
Yes


Waterproof (depth/min.)
1.5 m


Dimensions h/w/d in mm
165/146/66 mm

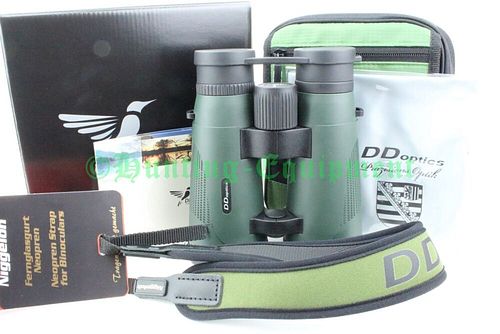

Delivery contents:
Ergo 10x56 Gen. 3.1
Niggeloh carrying strap
Binocular case
Objective lens caps
Eyepiece caps
Cleaning cloth
Operating instructions
