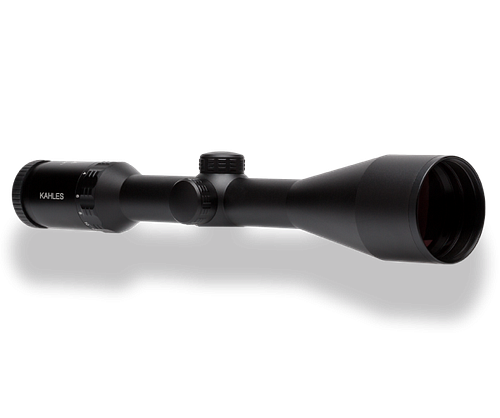

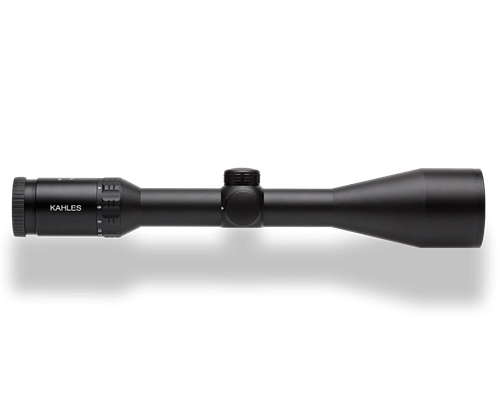

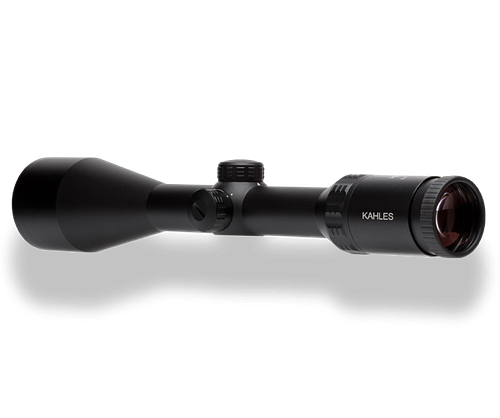

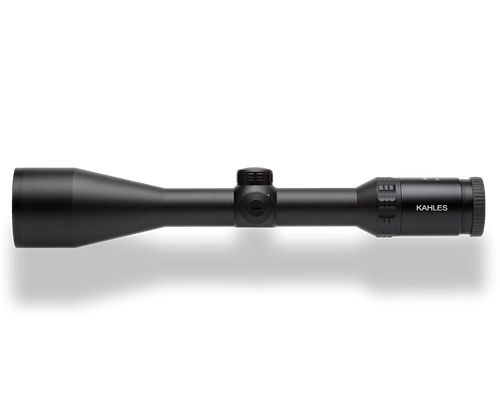

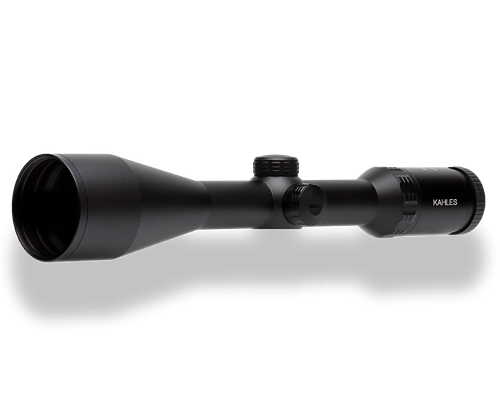

KAHLES HELIA 2.4-12x56i SR Reticle 4-Dot

Top Class for Hunting
The HELIA series impresses with its uncompromising focus on what really matters: functionality, reliability, handling, and aesthetics. The perfect tool for hunting.
Ideal for stand hunting with exceptionally high light transmission at dusk and night. Perfect image with the best contrast and a wide, brilliant field of view. Powerful optical system with exceptional edge sharpness. Day/night illuminated reticle with intelligent automatic shut-off. OILPHOBIC coated lenses.

Magnification: 2.4 - 12
Objective diameter: 56 mm
Eye relief: 95 mm
Field of view: 16.5 - 3.3 m/100 m
Diopter adjustment: +2 / -3.5 dpt
Dusk number (DIN 58388): 7.4 - 25.9
Impact point correction/click: 10 mm
Adjustment range (H/S): 1.9/1.9 m/100 m
Main tube diameter: 30 mm
Length: 359 mm
Weight: 680 g
Weight (SR rail): 704 g
Reticle image plane: 2
Illuminated: Yes

2nd Image Plane
When changing the magnification, the reticle remains the same size – the size of the image changes, but not that of the reticle. The cover dimensions change depending on the magnification.
Main tube 30mm The main tube has a diameter of 30 mm, the standard size for hunting riflescopes.
