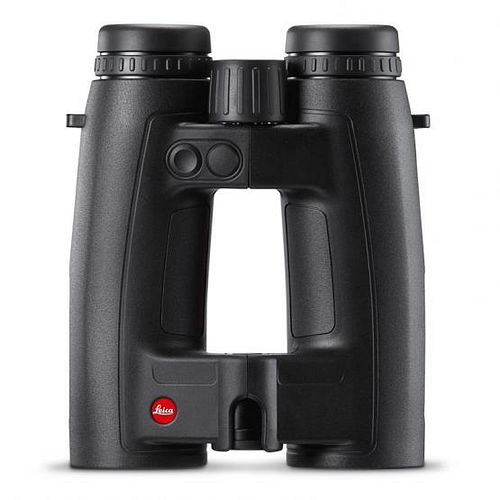

Leica Geovid 10x42 HD-B 3000

The new Leica Geovid HD-B 3000 models enable linear distance measurement up to 3,000 yards (2,750 meters) for the first time. The Leica Geovid HD-B 3000 offers a unique combination of ABC® ballistic technology, optical quality, and ergonomic design worldwide.

Ballistic measurements can be output in three formats: holdover, click adjustment, and as corrected, horizontal distance. Air pressure, temperature, and angle are included in the measurements to calculate the correct hold point with the highest precision. With a microSD card and the Leica ballistic calculator, individual ballistic data can be fed into the Geovid, resulting in measurement data perfectly tailored to the load and caliber.

The Leica Geovid HD-B 3000 models offer – in addition to extended distance measurement over long ranges – a newly designed LED display that clearly presents the measured data in all lighting and weather conditions.

Technical specifications:


Zoom: 10 x
Objective diameter: 42 mm
Eye relief: 4.2 mm
Dusk number: 20.5
Field of view at 1,000 m: 114 m
Minimum focusing distance: approx. 5 m
Diopter adjustment: +/- 4 dpt
Distance measurement:
Range: 10 m – approx. 2,750 m (3,000 yards)
Equivalent horizontal distance (EHR): 10 m to 1,100 m
Measurement accuracy: ± 0.5 m at 10 - 200 m
± 1.0 m at 200 - 400 m
± 0.5 % over 400 m
LED display with 4 digits and ambient light-controlled brightness adjustment
Eyecup with rotating sliding sleeve, removable, with 4 click stops
Internal focusing via central drive
Prism system: Perger-Porro system
Coating: HDC® – multi-coating, Leica Aqua-Dura™ – coating
Waterproof up to 5 m water depth
Housing: Magnesium, nitrogen-filled
Dimensions (WxHxD): 125 x 174 x 70 mm
Weight: approx. 980 g including battery
Meter/Yard switch: yes
Laser: eye-safe, invisible laser according to EN and FDA Class 1
Measurement time: max. 0.3 sec
Measurement functions: single measurement and scan mode
Ballistic function: equivalent horizontal distance (EHR), hold point correction, number of necessary clicks for reticle adjustment
Bullet trajectories: 12 pre-installed curves, integration of own data via microSD card
Power supply: 1 x 3 V/Lithium round cell CR2
Battery life: approx. 2,000 measurements at 20°C
Scope of delivery: contour-shaped neoprene carrying strap, objective lens cover, eyepiece cover, battery, Cordura case
