Jahnke Jahnke intention night vision device DJ-8 NSV Onyx

DJ-8 NSV – The attachment device for daytime optics
The new "DJ-8 NSV" is the first fully operational, civilian German night vision attachment that can utilize magnifications of daytime optics unrestrictedly up to over ten times.
Not only setting new standards in terms of light performance and image quality, the newly developed focusing mechanism (patent pending!) allows for a 10 – 15 cm shorter adjustment path for image sharpness compared to other devices.
The first mass-produced magnesium lens of this class (world novelty!) ensures low weight and a balanced design.
The “DJ-8 NSV” can be combined with daytime optics, such as binoculars, telescopes, and spotting scopes.
As an attachment device, it only has a 1x magnification.
In poor lighting conditions, an additional IR lamp can significantly improve image quality.
However, the large objective diameter, which is significantly above that of comparable devices, allows for a high degree of independence from IR support. This is a crucial advantage, especially in situations where light haze or fog can lead to reflections or where it is desired for other night vision devices not to use visible IR light.

Our high-end device with black-and-white image representation and the following features:

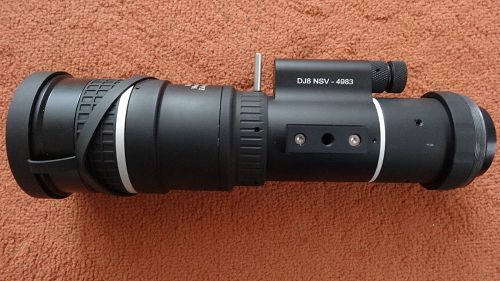

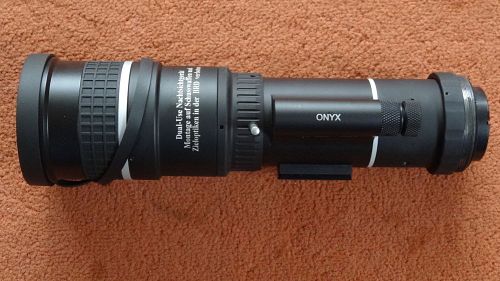

- Night vision device DJ-8 NSV with brand new Western European image intensifier tube from Photonis
- 1x magnification

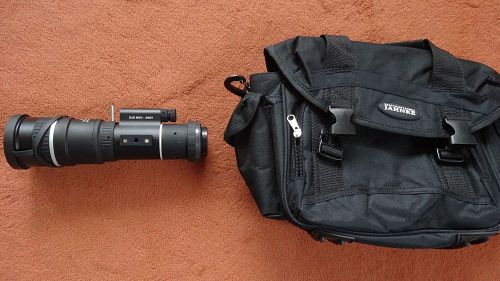

- Bag for transport and storage

Technical specifications according to the used image intensifier tubes:

| Jahnke DJ-8 | Selected Tube | SuperGen | HyperGen | Onyx |
|--------------|---------------|----------|----------|------|
| Image resolution min. lp/mm | 45 | 60 | 68 | 68 |
| Light sensitivity min. µA/lm | 450 | 600 | 700 | 700 |
| Light amplification min. | 30,000 | 50,000 | 65,000 | 65,000 |
| Weight | from 620 g | from 620 g | from 620 g | from 620 g |
| Length | from 20 cm | from 20 cm | from 20 cm | from 20 cm |
| Lifespan | 10,000 hours | 10,000 hours | 15,000 hours | 15,000 hours |
| Color reproduction | green | green | green/yellow | black/white |
| Shock resistance | 500 G (G=gravity) | 500 G | 500 G | 500 G |
| Operating time | approx. 50 hours | approx. 50 hours | approx. 50 hours | approx. 50 hours |
| Power supply | 1 x CR2 Lithium | 1 x CR2 Lithium | 1 x CR2 Lithium | 1 x CR2 Lithium |

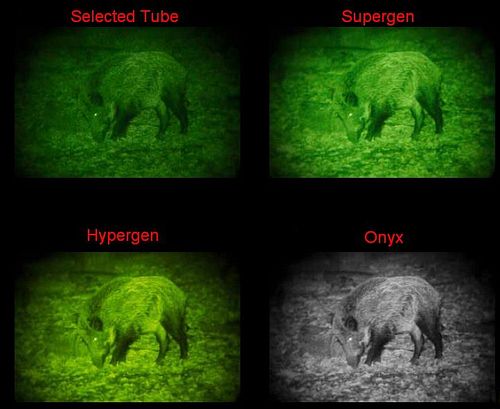

Here you see a representation of the image quality of the individual image intensifier tubes:

Product safety information: This product was made available on the marketplace before 13.12.2024. For manufacturer and safety information, please contact the offering dealer.
WARNING: The presentation of the acquisition authorization is required for the purchase of this product!!!
