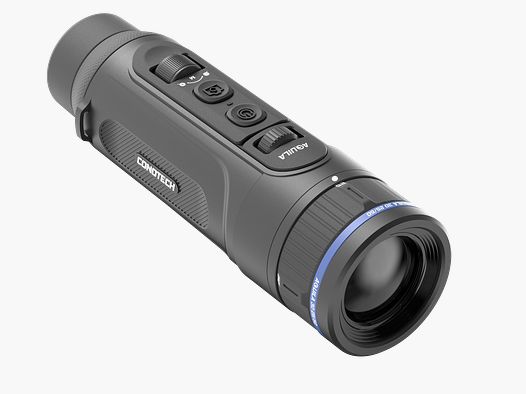

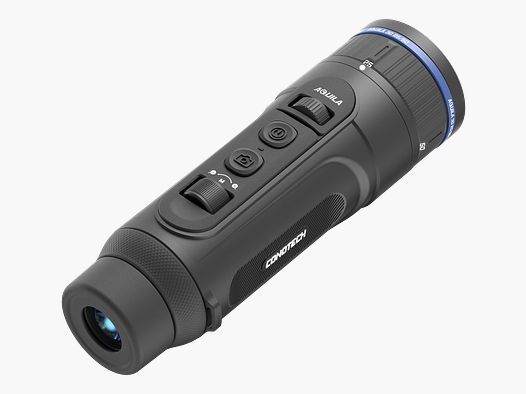

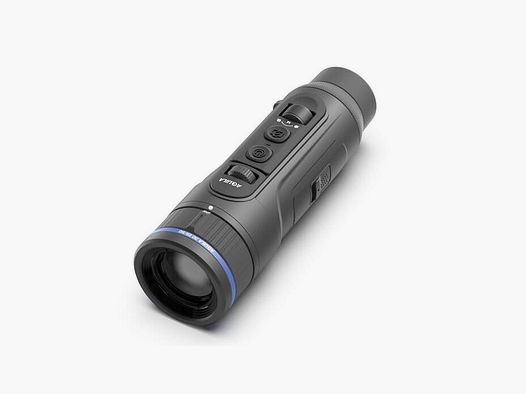

Conotech Aquila 3D 25/50 Wärmebildgerät

Model
Aquila 325
Aquila 335
Aquila 3D 19/38
Aquila 3D 25/50
Aquila 350LIIR
Aquila 635
Aquila 6D 19/38
Aquila 6D 25/50
Aqulia 650LIIR

Main Characteristics

Detector
Uncooled Vox

Resolution
384x288

Frame rate
50HZ

Pixel
12μm

Spectral range
8-14μm

NETD
25mK

Optical Characteristics

Objective lens
25mm
35mm
19mm/38mm
25mm/50mm
50mm
35mm
19mm/38mm
25mm/50mm
50mm

Magnification
2.4x
3.3x
1.8x-3.7x
2.4x-4.8x
4.8x
1.9x
1.0x-2.0x
1.4x-2.7x
2.7x

FOV(H×V), m @100m
18.4×13.8
13×9.9
12.1×9.1 / 24.3×18.2
9.2×6.9 / 18.4×13.8
9.2×6.9
22×17.5
20.2×16.2 / 40.4×32.3
30.7×24.6 / 15.35×12.3
15.35 ×12.3

Close-up range
2m

Dioptre adjustment
±5D

Functions

Smooth zoom
2.4x-10x
3.3x-13.8x
1.8x-7.5x / 3.7x-15.4x
2.4x-10x / 4.8x-20x
4.8x-20x
1.9x-10x
1.0x-5.2x / 2.0x-10.4x
1.4x-7.3x / 2.7x-14x
2.7x-14x

Palettes
8

Audio recording
YES

Firmware update via APP
YES

Photo/Video
YES

Display

Type
OLED

Resolution
1024x768

External video
WIFI

Built-in memory
32GB

Power Supply

Battery
Dual Battery

External power supply
5V USB-C

Operating time (at t=22°C)
10h

Physical Characteristics

Weight
(without external battery)
≤540g
≤540g
≤570g
≤600g
≤560g
≤540g
≤570g
≤600g
≤560g

Dimension
≤φ61x179mm
≤φ61x179mm
≤φ61x205mm
≤φ61x205mm
≤φ61x193mm
≤φ61x179mm
≤φ61x205mm
≤φ61x205mm
≤φ61x193mm

Environmental Compatibility

Ingress protection rating
IP67

Operating temperature
30

Storage temperature
30

Laser Rangefinder (Only available in Aquila 350LIIR and 650LIIR)

Safety class for laser
equipment according to
IEC 60825-1:2014
/
1
/
1

Measuring range
/
5-1200m
/
5-1200m

Measurement accuracy
/
± 1m
/
± 1m
