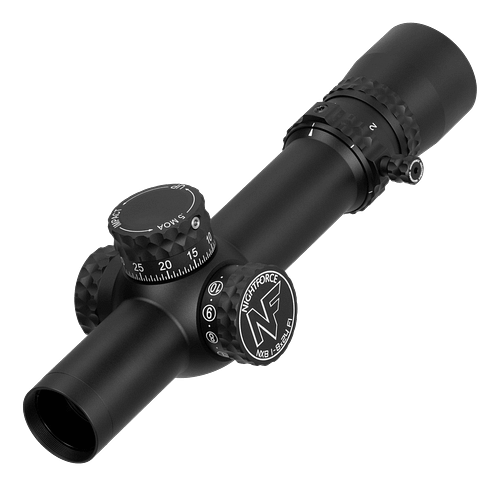

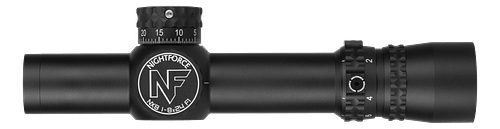

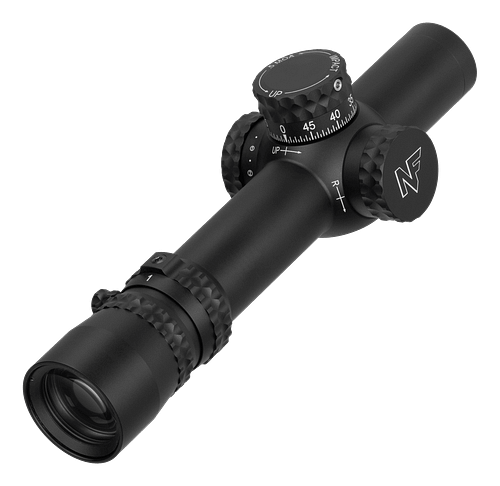

Nightforce NX8 1-8x24mm F1 Zerostop

The Nightforce NX8 1-8x24mm F1 is an excellent compact and lightweight optic for carbines or featherweight hunting rifles. The 8x magnification offers crisp images at extended ranges. The true 1x magnification and daylight visible illumination are ideal for closer engagements at red dot speeds. The built-in Power Throw Lever makes changing magnification fast and easy.

Magnification Range:
1-8x

Focal Plane:
First

Overall Length:
8.7 in/222 mm

Weight:
17.3 oz/490 g (capped)
17.6 oz/499 g (ZeroStop™)

Body Tube Diameter:
30 mm

Mounting length:
5.7 in/144 mm

Elevation Feature:
Capped, Finger Adjustable or ZeroStop™

Click Value:
.500 MOA or .2 MRAD

Internal Adjustment Range:
E: 100 MOA/29 MRAD
W: 100 MOA/29 MRAD

Parallax Adjustment:
Fixed @ 137 yd/125 m

Field of View (@100 yd/m):
1x: 106.0 ft/35.3 m
8x: 13.2 ft/4.4 m

Eye Relief:
3.7 in/95 mm

Exit Pupil:
1x: 7.9 mm
8x: 3.0 mm

Illumination:
Daylight Visible, Externally Adjustable

Power Throw Lever:
Standard

Reticle:
FC-MOA,FC-MIL
